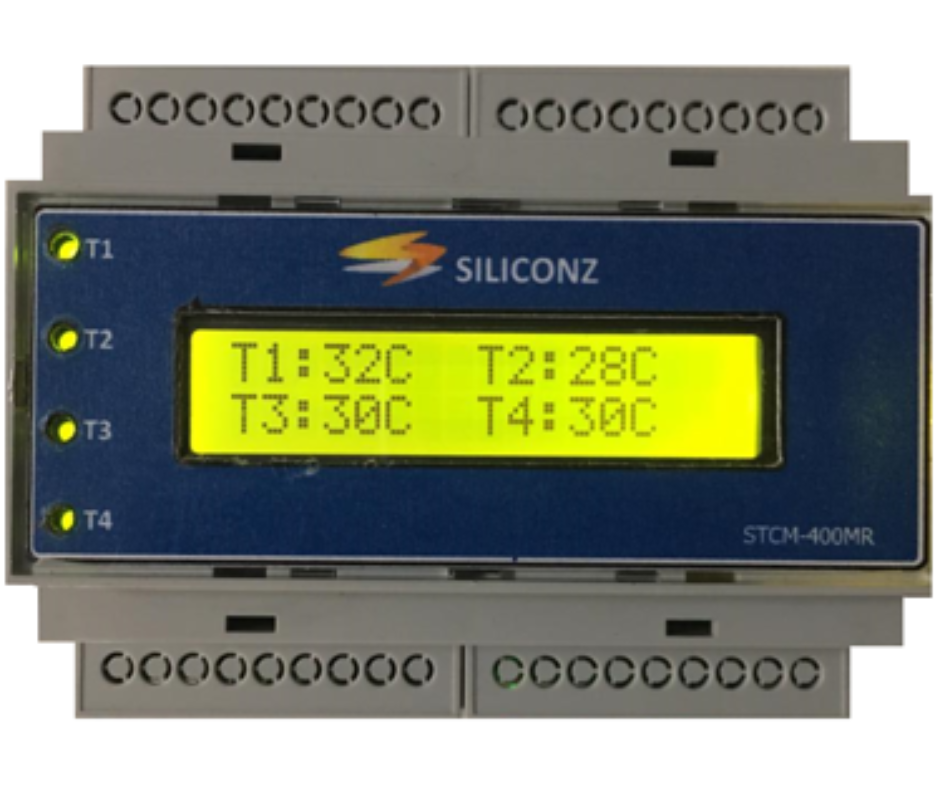

Temperature Controller – STCM400R
- 4 Channel Simultaneous temperature monitoring with 1ºC accuracy
- Integrated Cold Junction compensation
- Supports K, J, N, T, S, R, and E-Type
- Detects thermocouple Open or Short
- Configurable relay On / Off with temperature Low / High threshold
- Bi-color LED status indication
- Configurable Buzzer for audio alert
- RS232 interface
- 24V DC Industrial Operation
- DIN Rail Enclosure

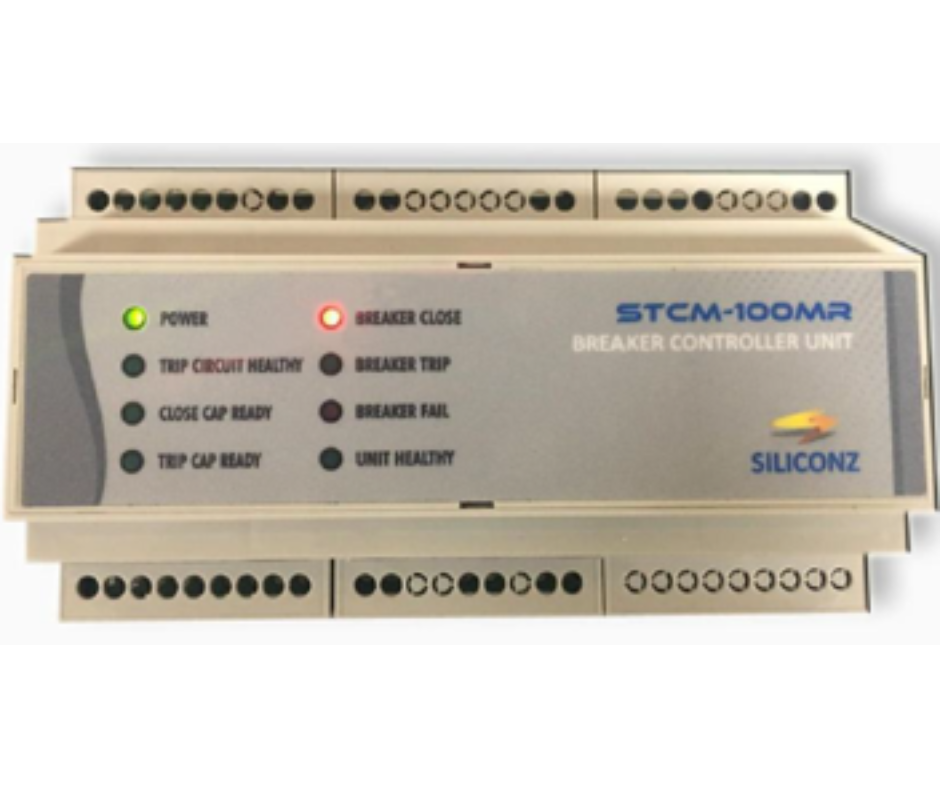

Breaker Control Unit – STCM-100MR
- Breaker Control unit with pre-defined conditions for proper operation of Magnetic Actuated Circuit Breaker.
- Separate magnetic coil for close and trip operation
- Provides Accurate voltage monitoring, Status Indication through potential free relay and Front panel LEDs
- 24V DC Operation
- True RMS Voltage Measurement
- Continuous Trip Coil Continuity monitoring

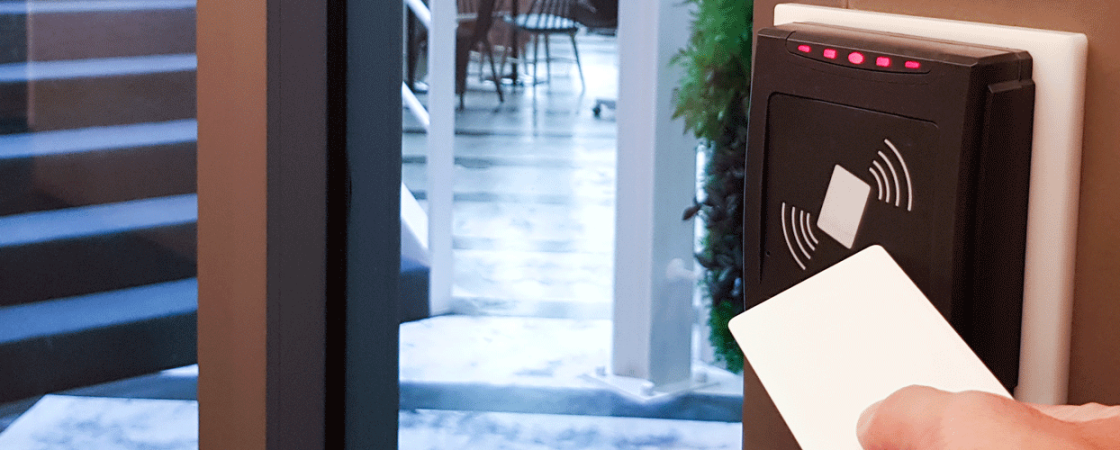

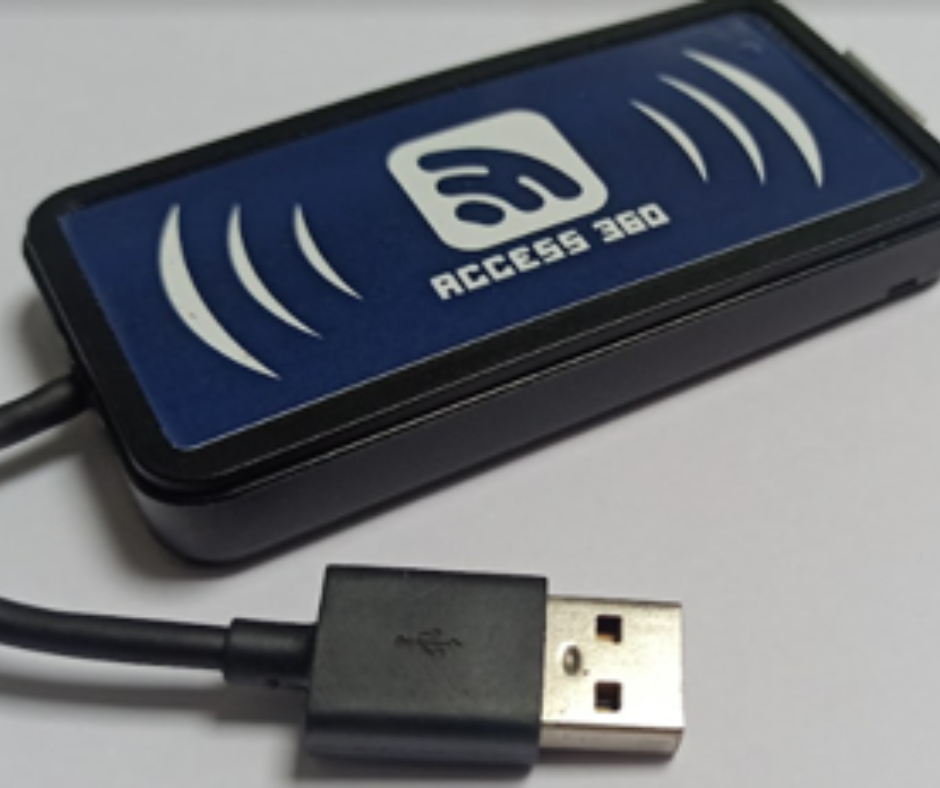

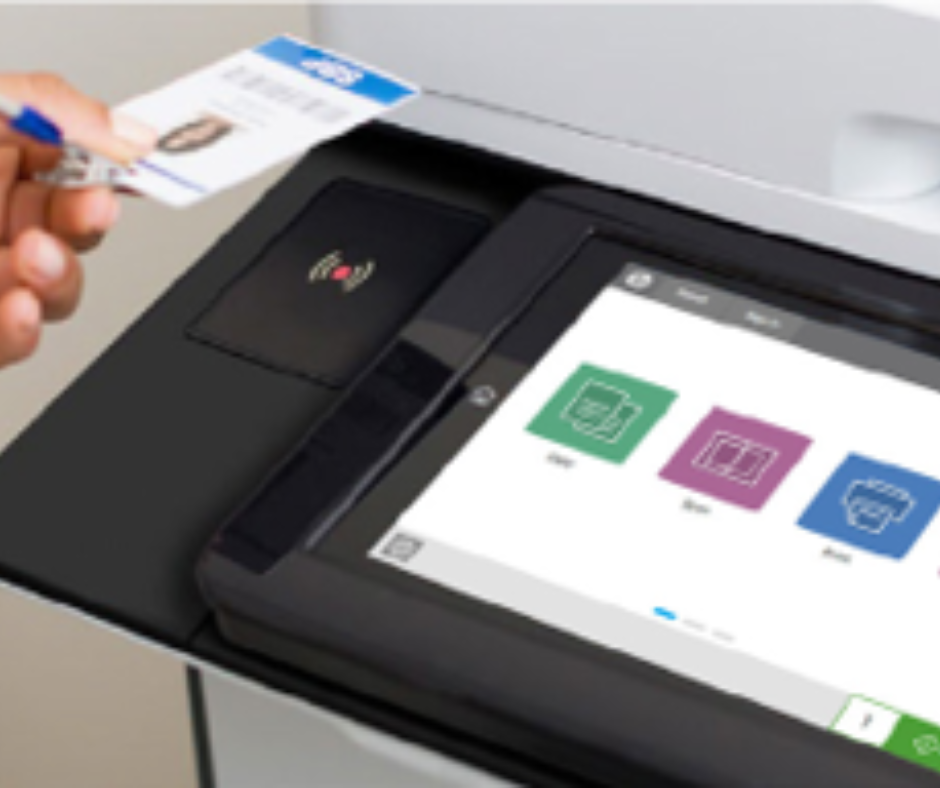

HID RFID Reader – Access 360
- Dual frequency 125 kHz or 13.56 MHz Plug and Play reader
- Maximum read range 2.5 – 7.5cm dependent upon card type

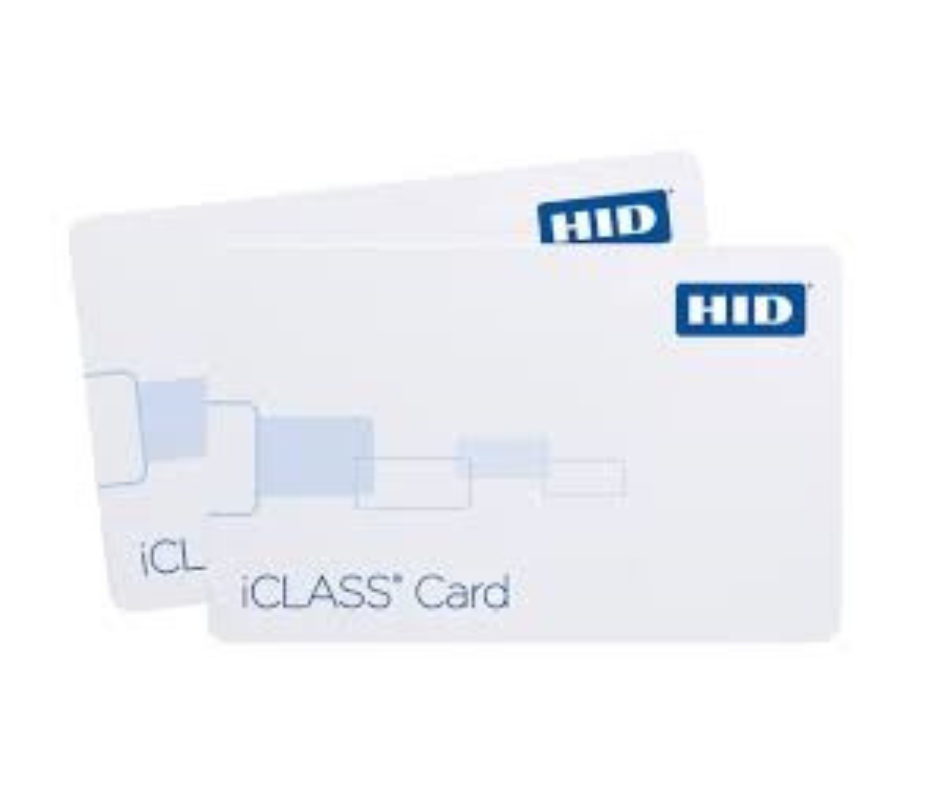

- Supports HID iClass, Mifare Series, HID Prox, Clamshell, EM Series cards
- USB Self powered and HID keystroke Input

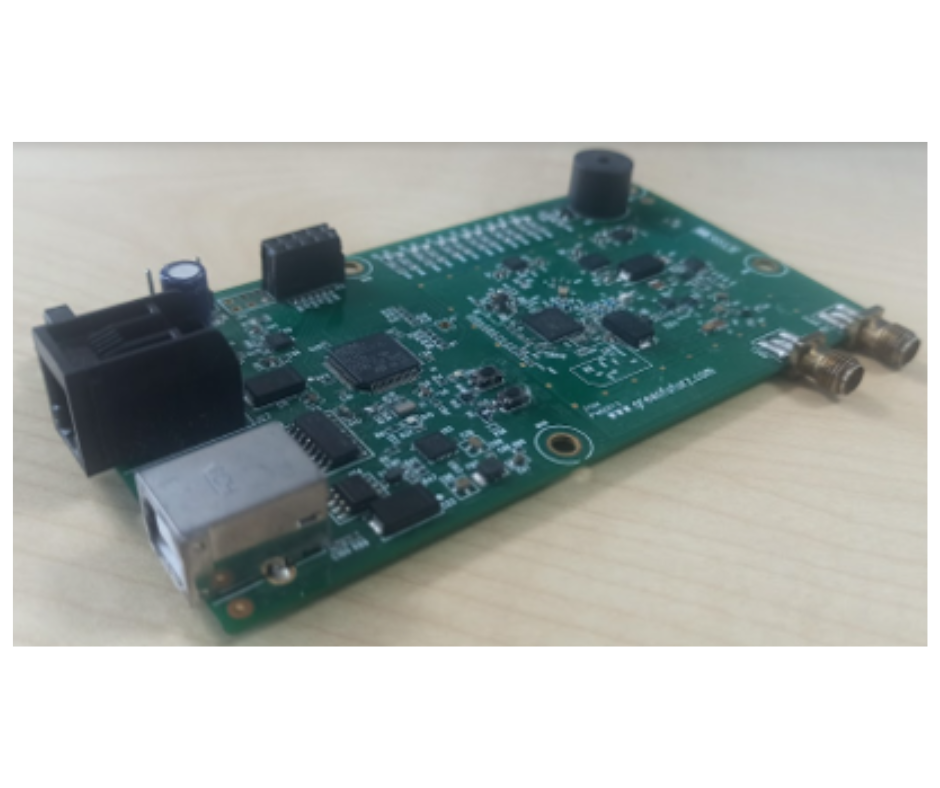

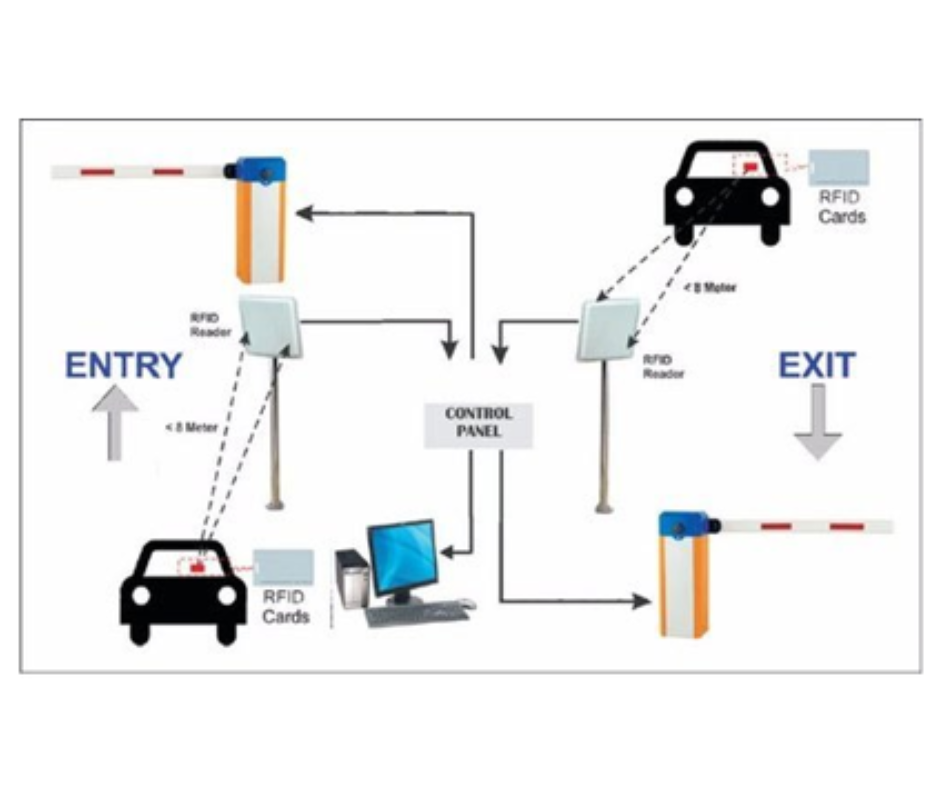

Multi-protocol UHF Reader
- Provides multi-protocol support for the 840-960 MHz UHF band
- Compatible with ISO/IEC 18000-63:2015 / Gen2V2
- SW controlled High Power Amplifier with up to 29dBm for better performance
- High Sensitivity -80dBm
- Maximum tag read rate: 150 tags/s (with 16-bit tag EPC length)
- Dual Antenna with manual / automatic switching
- Transponder RSSI display
- Transponder EPC read / write
- Low Power Operation
- USB 2.0 / RS232 Interface

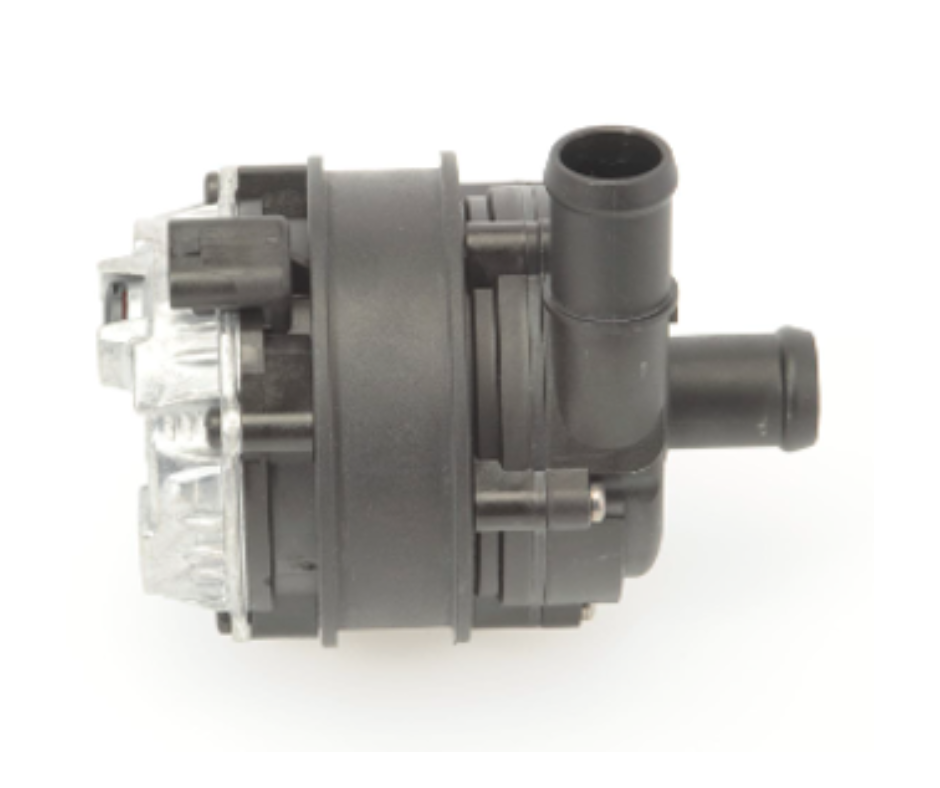

BLDC Coolant Pump
The Coolant Pump is based on brushless drive & its speed can be controlled via PWM or LIN interface. It is used to support the coolant flow, which helps to reduce the load on the battery and circuit & has built-in diagnostic function.
- Elmos BLDC SoC with Integrated 16-bit MCU and Gate driver
- Support FOC and CZCD algorithms
- Sensor-less Motor Speed control
- Input filter with reverse polarity protection
- LIN/ PWM Interface

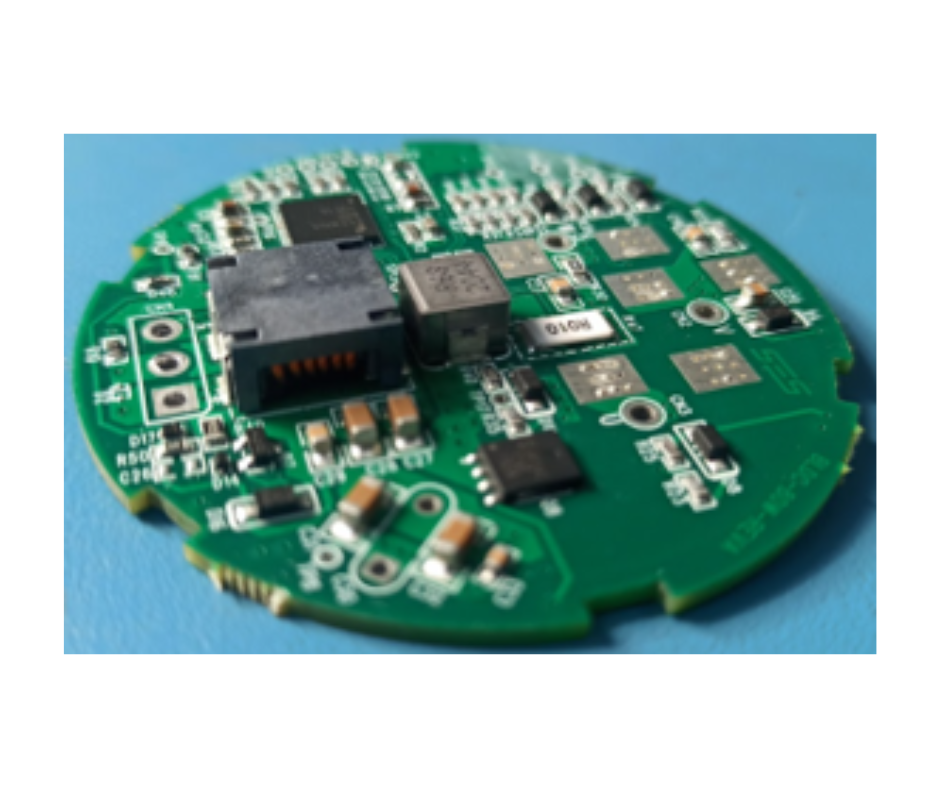

- 4 Layer PCB with thermal management

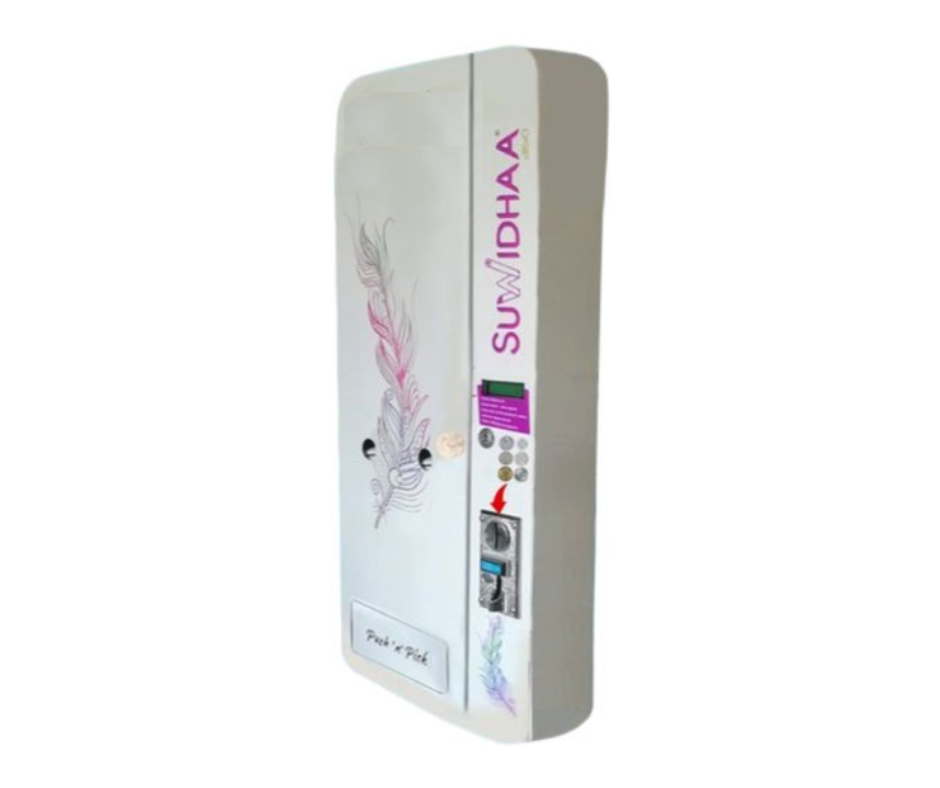

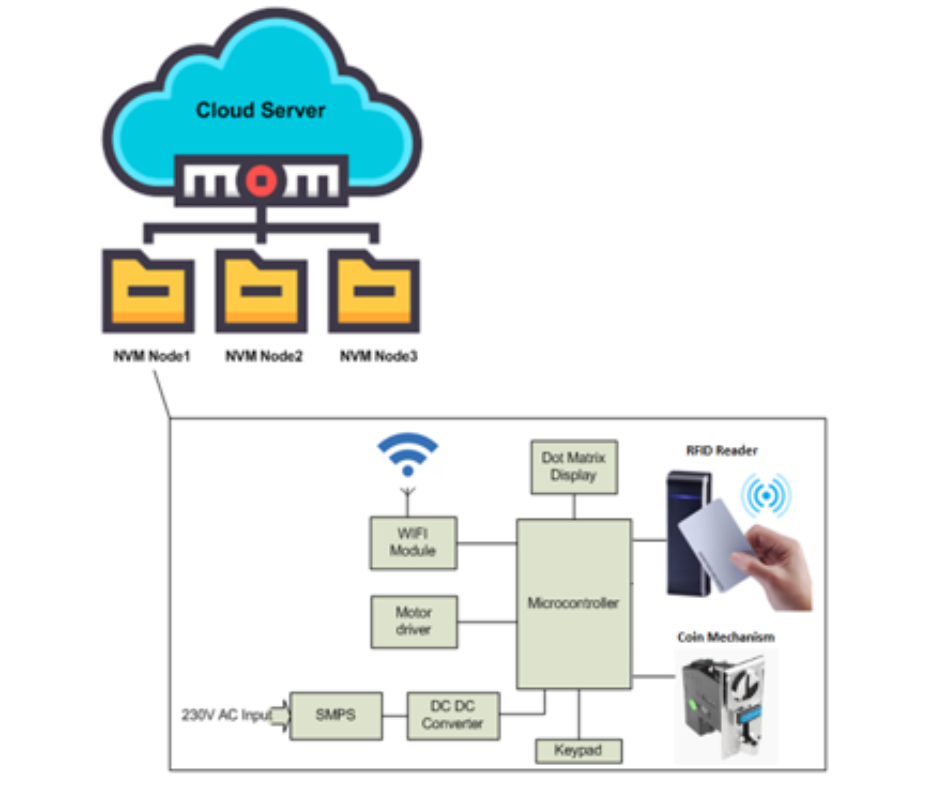

Vending Machine w/Cloud Support
This IoT based Vending Machine Controller helps to dispense any product, when there is a valid RFID tag authentication. The software application runs on the remote server and the vending device communicates to the remote server over the Wi-Fi network.
User based login to access the application to Monitor the device connection status and current Stock on the dashboard.
Helps to generate reports based on Employee, Location & Device.

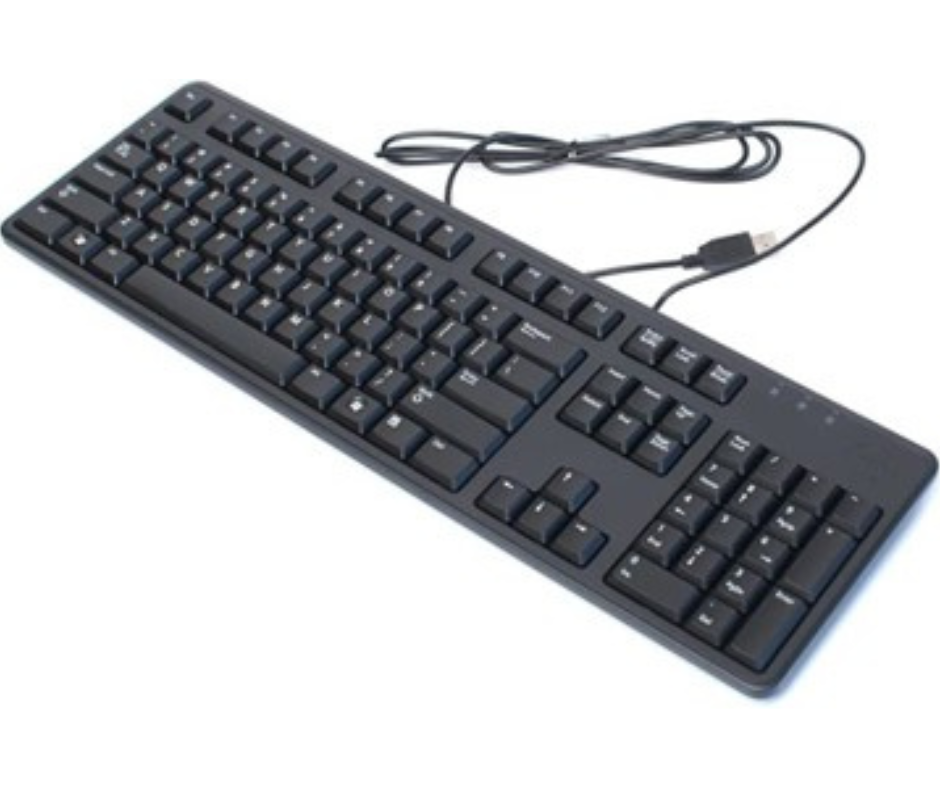

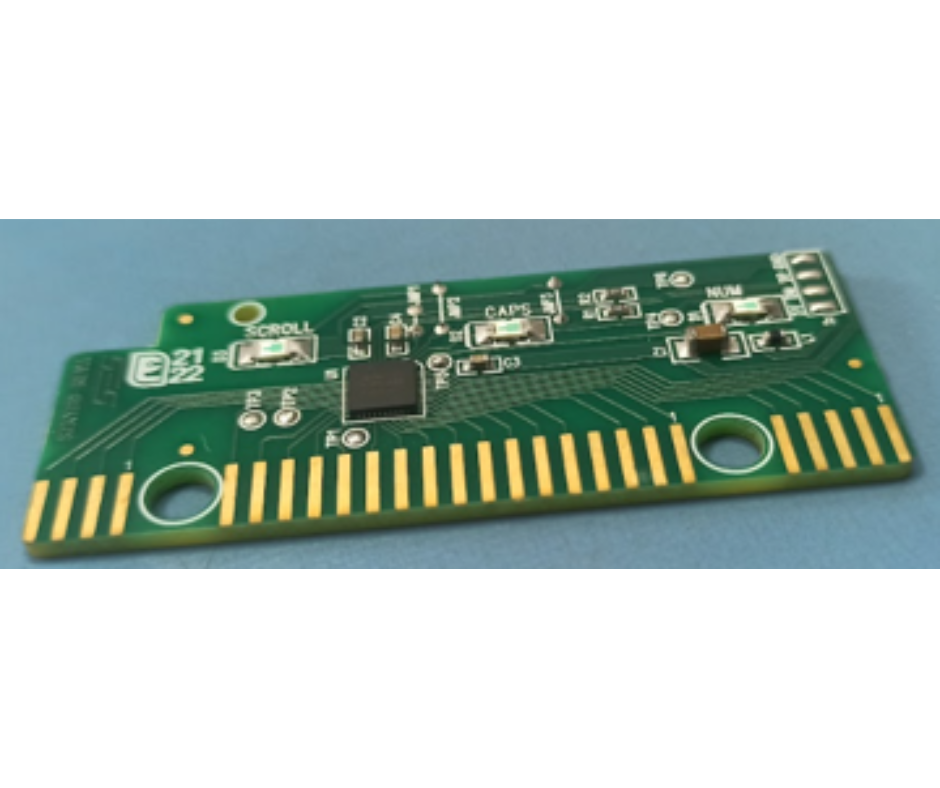

Multimedia Keyboard
- MCU with customizable PID/VID
- 104 Standard Keyboard
- Multimedia Function Enabled
- USB HID interface
- LED indicators for NUM lock, CAPS lock and SCROLL lock
Benefits
- Low-cost Single Chip solution
- Drop in replacement

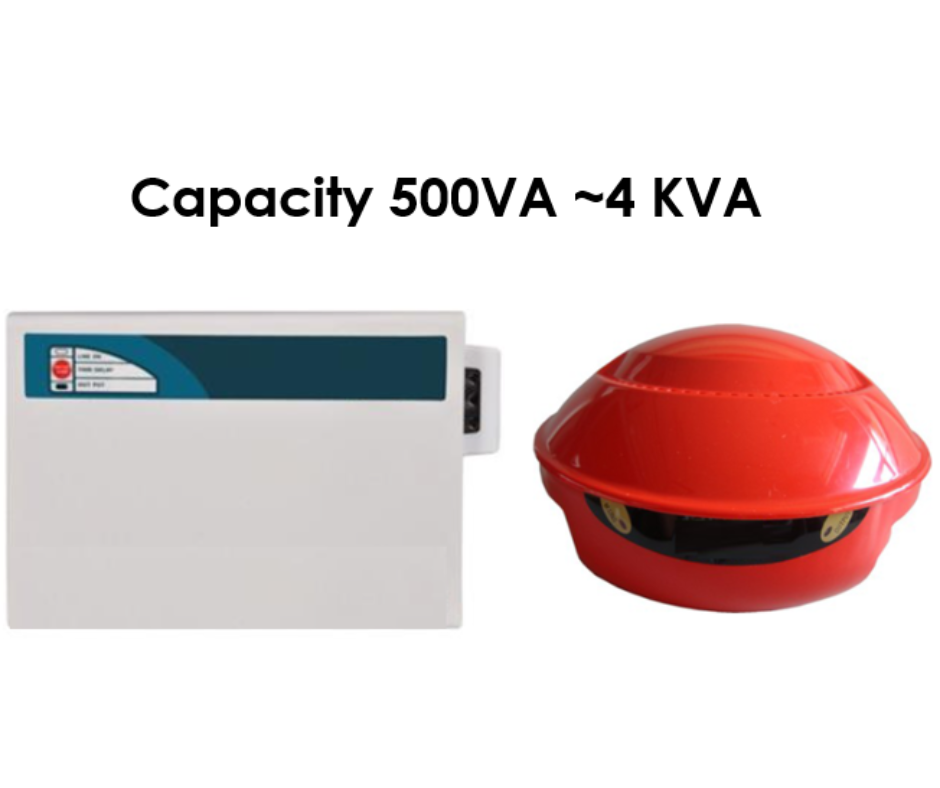

Voltage Stabilizer

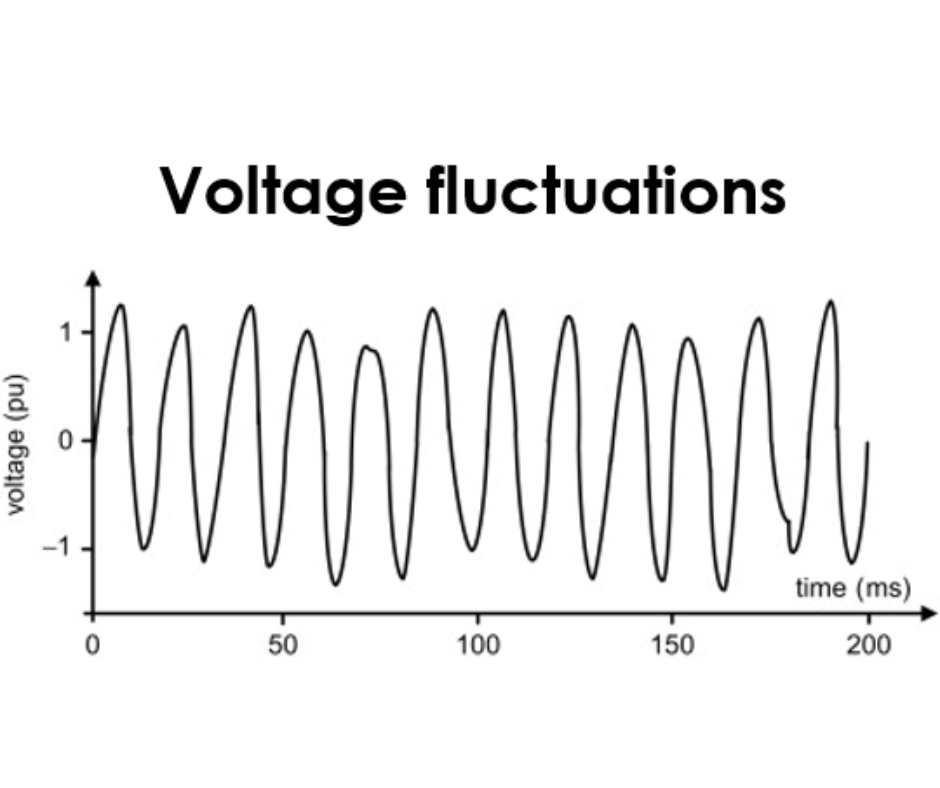

Detects the Voltage fluctuations in the utility and Regulates internally to deliver a consistent range of output voltage.
Provides steady-state voltage to the Electrical and Electronic appliances to increase their life.
Continuously provides a safe output voltage, irrespective of stable or unstable voltage input

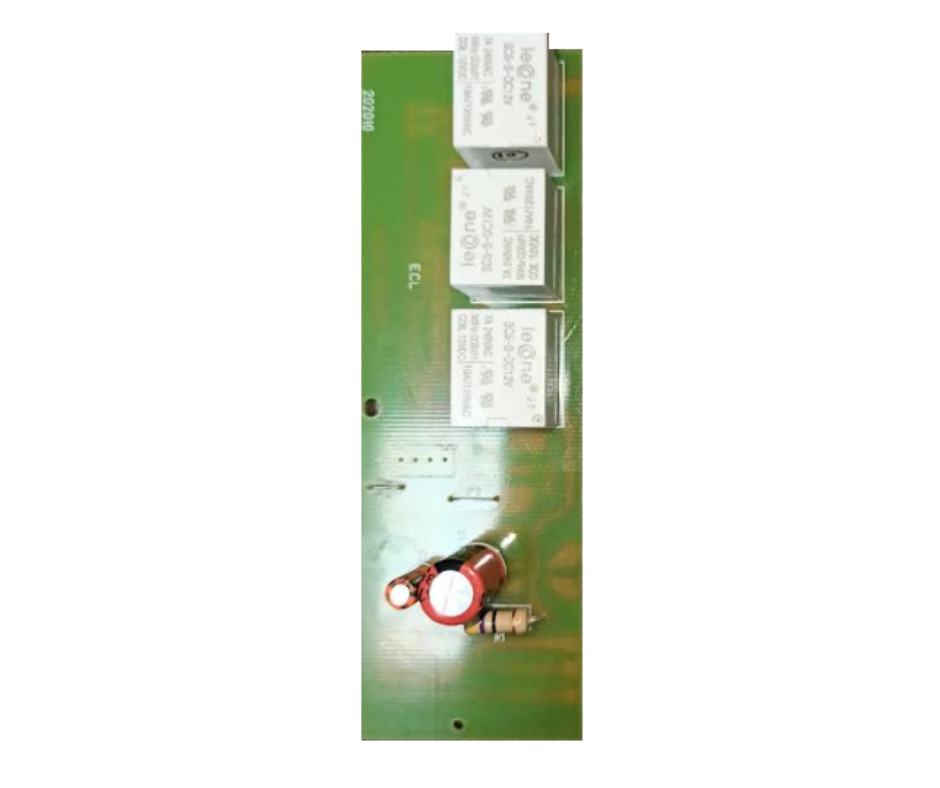

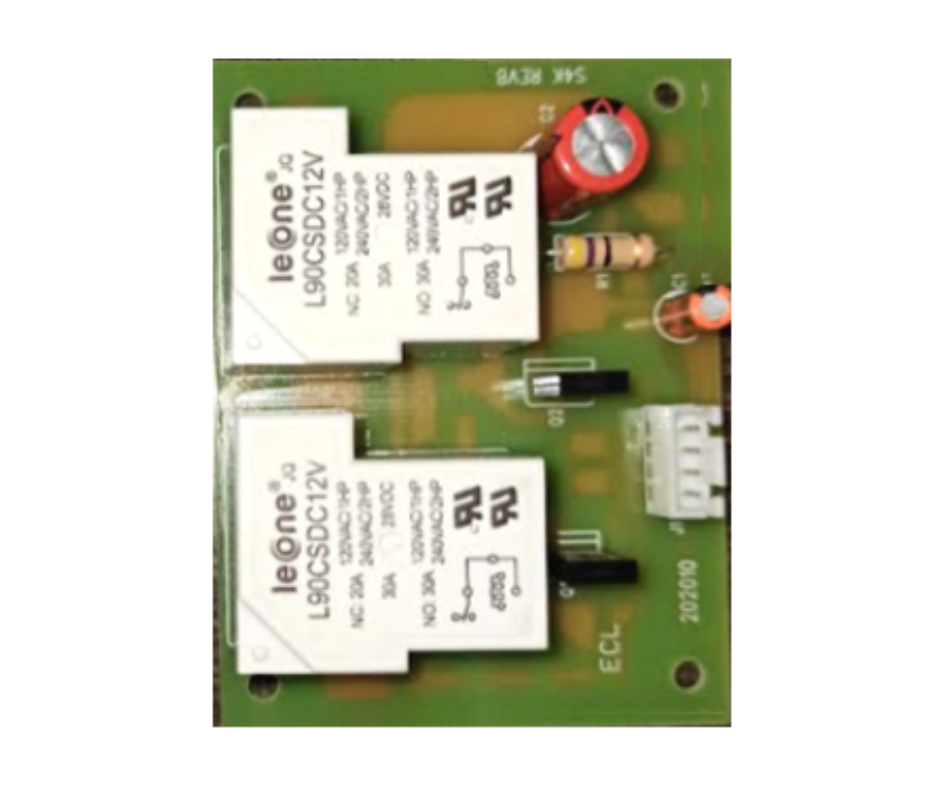

Voltage Stabilizer Control Board
Models
- 500VA – Refrigerators
- 600VA ~ 1KVA – LED/LCD TV
- 4KVA – Air Conditioner
- 4KVA double boost – Air Conditioner
Features
- LED indicator
- Time Delay function / Reset Switch
- Under voltage & Over voltage Protection
- Peak detection Algorithm
- Microcontroller based automatic control / cut-off / restart

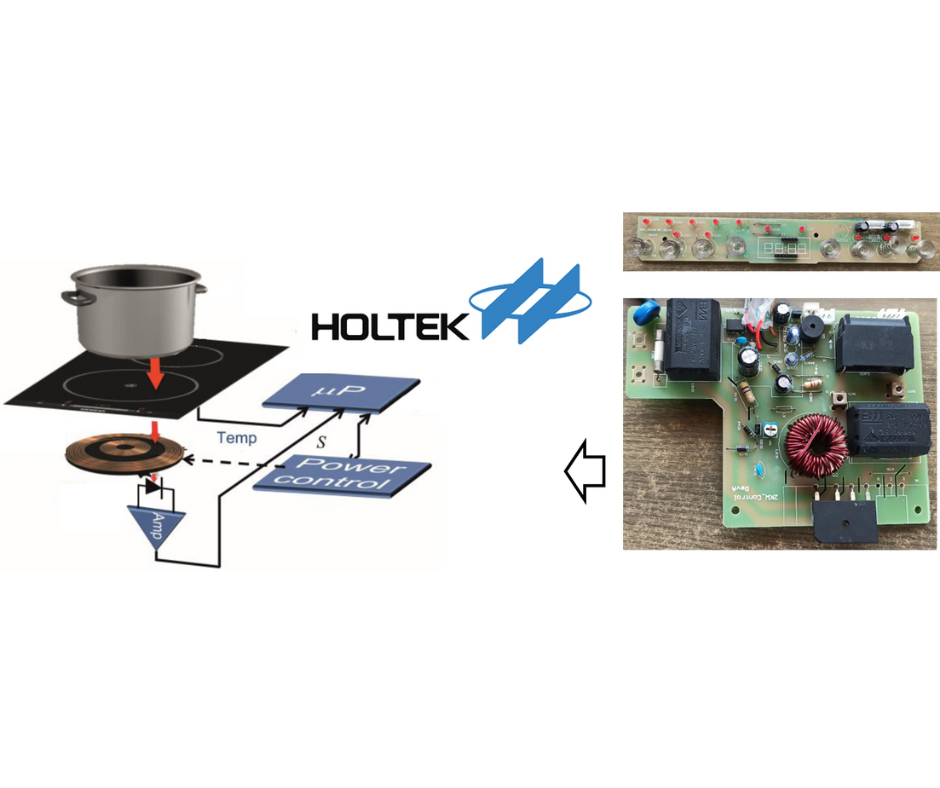

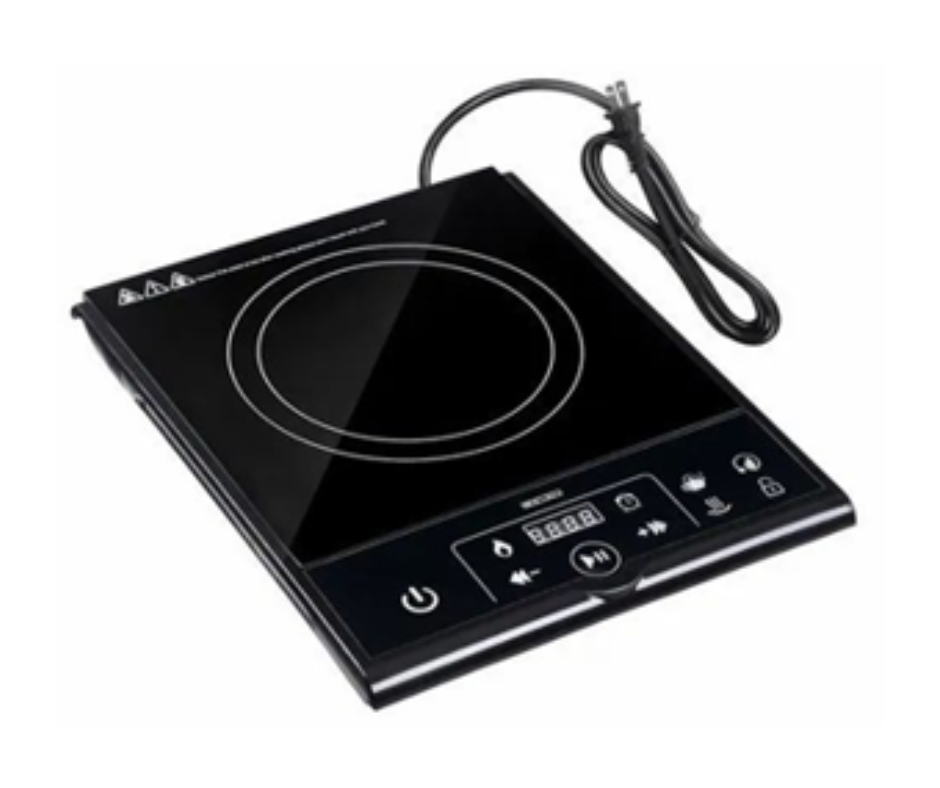

Induction Stove Controller
- Single IGBT Induction Cooker based on SoC Controller with integrated Comparators, Op-amps, Frequency Jittering features to reduce component cost
- Heating power 100~2000W
- Protection includes over / under voltage, over current protection, cook top surface overheating, IGBT overheating and surge protection

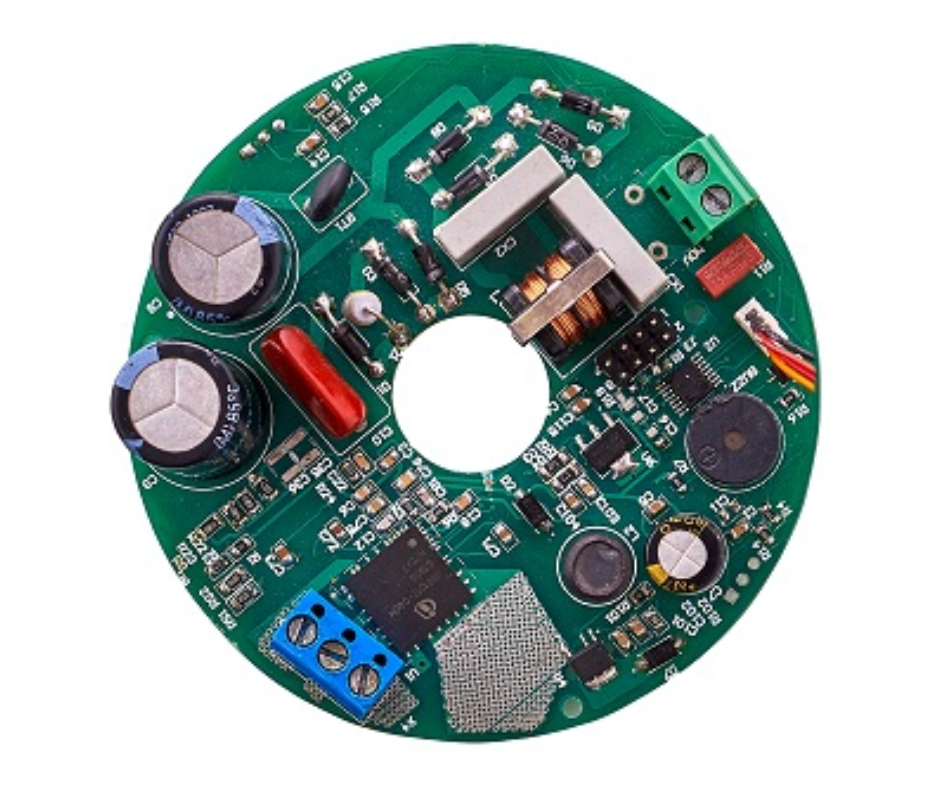

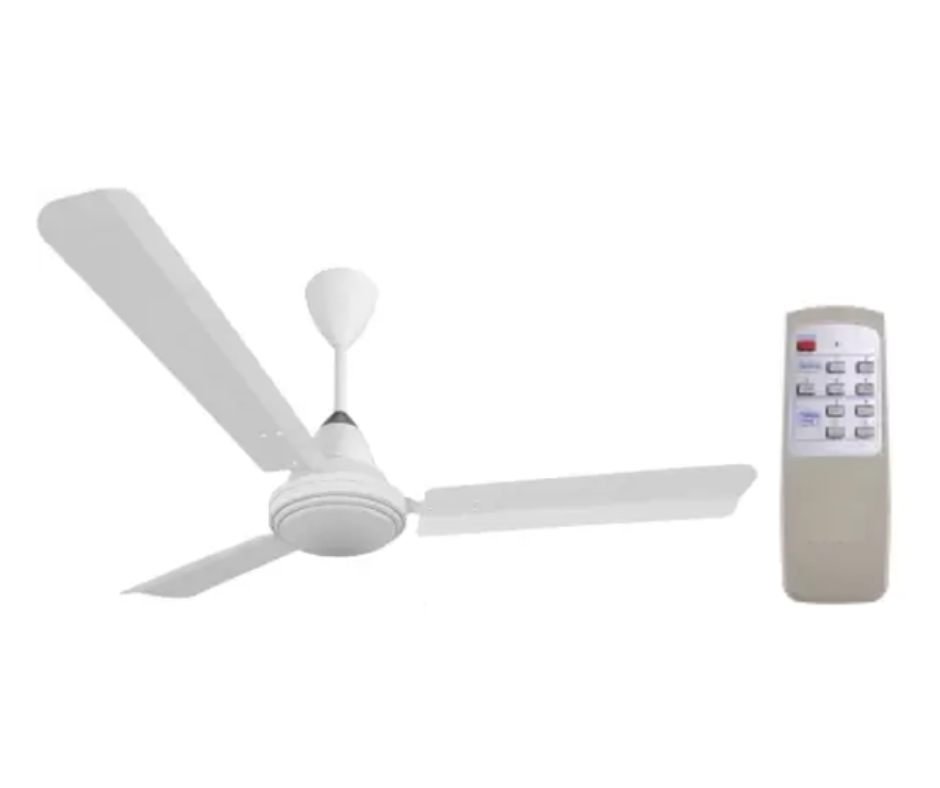

BLDC Ceiling FAN Controller
- High Performance 32bit ARM Microcontroller w/ integrated Gate/ MOSFET drivers
- Remote control – on/off for speed and timer Control
- 40 Watt @ Rated Voltage.
- High Speed (350+ RPM) at Low Power
- Greater than 0.9, Passive PFC @ Rated Voltage.
- Sensor less FOC 180-degree commutation
- Smooth (no back kick)
- Can run on the fly without stopping
- Over Voltage, Under Voltage, Over Current and Over Temperature Protection
- LED for speed change Indicator
- 85-264 Vrms AC, 50 Hz, Single Phase operation
